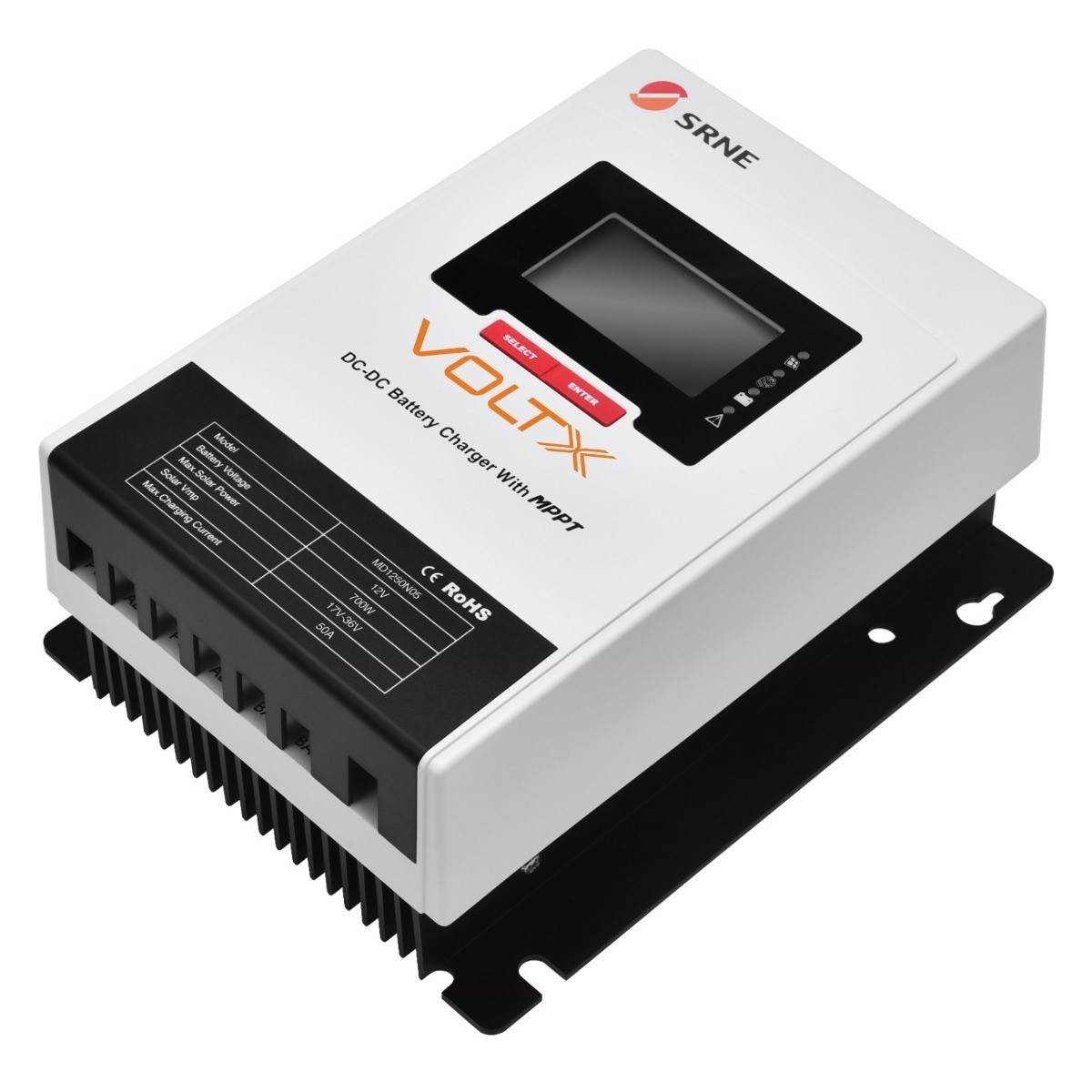

SRNE VoltX 50A MPPT DC to DC 12V Lithium Battery Charger
Model MD1250N05
Backup Battery System Voltage 12V
Backup Battery Voltage Range 9~16V DC
Backup Battery Type Sealed Battery, Gel Battery, Vented Battery, Lithium Iron Phosphate Battery, User-defined Battery
Rated Charging Current 50A
Maximum PV Input Voltage 55V DC
Max. power point voltage range 17~36V
Maximum PV Input Current 45A
PV input power is recommended 700W
Generator (Starter Battery) System Voltage 12/24V
Starter Battery Type Lead-acid Battery
Max. Generator Input Voltage 32V DC
Maximum Generator Input Current 35A
Description
Model MD1250N05
Backup Battery System Voltage 12V
Backup Battery Voltage Range 9~16V DC
Backup Battery Type Sealed Battery, Gel Battery, Vented Battery, Lithium Iron Phosphate Battery, User-defined Battery
Rated Charging Current 50A
Maximum PV Input Voltage 55V DC
Max. power point voltage range 17~36V
Maximum PV Input Current 45A
PV input power is recommended 700W
Generator (Starter Battery) System Voltage 12/24V
Starter Battery Type Lead-acid Battery
Max. Generator Input Voltage 32V DC
Maximum Generator Input Current 35A
12V Backup Battery 700W
Charging Voltage 13.8V
Charging Current ≤25A
Operating temperature －35℃～65℃
Waterproof level IP32
Dimensions 221 x 175.8 x 82.4mm
The SRNE VoltX 12V DC to DC Charger with MPPT is a must-have for any solar power system. Boasting an advanced technology, this device delivers rapid response speed, high reliability, and high industrialised standard. Efficient and versatile with 4 charging phases suitable for charging lead-acid batteries and 3 generator charging modes, it’s perfect for topping off dual battery systems as well as other solar battery storage systems. Upgrade your dual battery system with the SRNE VoltX 12V 50A MPPT DC-to-DC Lithium Battery Charger. This handy device allows you to safely charge via your alternator and solar panels. Equipped with an MPPT function, this ensures optimal charging via solar energy by regulating the power generated by your panels which will flow into your battery. This lithium battery charger also protects against overheating, over-current, short circuit, and open circuit for reliable and maintenance-free operation – a real must-have for any dual battery system.
Features:
Versatile dual-function controller: Performs as both a DC-DC charger and an MPPT regulator
Safeguards against overheating, over-current, short circuit, and open circuit issues
Features a durable aluminum radiator for dependable performance in diverse working environments
Utilizes cutting-edge PowerCatcher MPPT technology
Offers convenient parameter tracking through a mobile phone app and PC monitoring software
